Waveguide
Adjustable Shorts
1.70 to 40.0 GHz
|
|
|
1.70 to 40.0 GHz |
Waveguide Adjustable Shorts
These adjustable waveguide shorts are
instruments designed for terminating a waveguide transmission line at various
points by a short circuit. These units utilize a non-contacting type short
circuit.

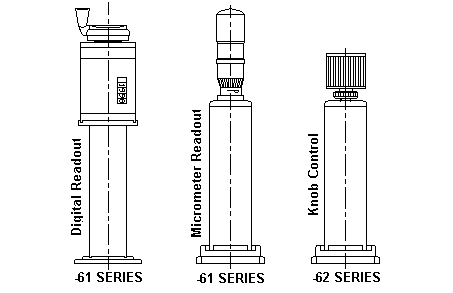

In the -61 Series units, the short circuit location is adjusted by means
of a standard micrometer head or digital readout which also indicates relative
positions of the short in increments of .001 in. A locking means is provided.
The -62 Series units utilize a smooth operating knob control which is
provided with a locking device. Alternate materials and flanges are
available. See flange section. Units are finished in instrument gray
enamel.
| WG Size |
Frequency Range, GHz |
Equivalent Flange Type |
WG Mtl. |
Short Travel (inches) |
Model Number |
Model Number |
| WR-430 | 1.70 to 2.60 | CPR-430 Flat | AL | 6.00 | 4361* | 4362 |
| WR-284 | 2.60 to 3.95 | UG-584/U Cover | AL | 4.50 | 261* | 262 |
| WR-229 | 3.30 to 4.90 | CMR-229 Style | AL | 3.00 | 2961* | 2962 |
| WR-187 | 3.95 to 5.85 | UG-407/U Cover | AL | 2.75 | 361* | 362 |
| WR-159 | 4.90 to 7.05 | CMR-159 Style | AL | 2.00 | 5961 | 5962 |
| WR-137 | 5.85 to 8.20 | UG-441/U Cover | AL | 2.00 | 461 | 462 |
| WR-112 | 7.05 to 10.0 | UG-138/U Cover | AL | 1.50 | 561 | 562 |
| WR-102 | 7.00 to 11.0 | WR-102 Cover | AL | 2.00 | 0261 | 0262 |
| WR-90 | 8.20 to 12.4 | UG-135/U Cover | AL | 1.00 | 661 | 662 |
| WR-75 | 10.0 to 15.0 | WR-75 Cover | AL | 1.00 | 7561 | 7562 |
| WR-62 | 12.4 to 18.0 | UG-1665/U Cover | AL | .75 | 761 | 762 |
| WR-51 | 15.0 to 22.0 | WR-51 BR Cover | BR | .50 | 5161 | 5162 |
| WR-42 | 18.0 to 26.5 | UG-595/U Cover | BR | .56 | 861 | 862 |
| WR-28 | 26.5 to 40.0 | UG-599/U Cover | BR | .38 | 1061 | 1062 |
|
* Digital Readout Models |
|
Please call if you need any further assistance or information. |
|
