Waveguide
Elbows 45 Deg.
1.70 to 50.0 GHz
|
|
|
1.70 to 50.0 GHz |
Waveguide Elbows 45 Deg.
These 45 degree elbows are constructed with precision MIL specification waveguide accurately formed to a constant radius in both E and H planes. Internal dimensions are carefully maintained. VSWR is 1.10 maximum over the full waveguide frequency range. Alternate materials & flanges are available. See flange section. Finish is instrument gray enamel.
Important ordering information: Add -1 to model number for choke - choke. Add -2 to model number for cover - cover. i.e.: Model #638-1 is a 45 degree E plane elbow assembly with choke flanges for WR-90 waveguide.
| WG Size |
Frequency Range, GHz |
Flange #1 |
Flange #2 |
WG Mtl. |
Bend Plane |

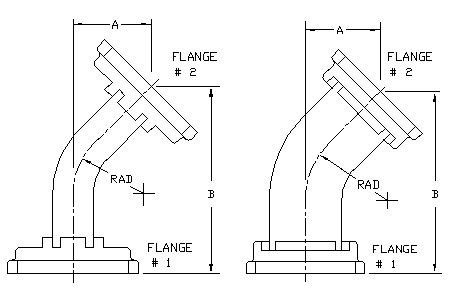

Inches A |
Inches B |
Inches Rad. |
Model No. |
| WR-430 | 1.70 to 2.60 | CPR-430 Flat | CPR-430 Flat | AL | E H |
3.53 3.88 |
8.53 9.38 |
7.15 8.25 |
4338 4339 |
| WR-284 | 2.60 to 3.95 | UG-584/U Cover | UG-585A/U Choke | AL | E H |
1.88 2.09 |
4.52 5.03 |
2.75 3.50 |
238 239 |
| WR-229 | 3.30 to 4.90 | CMR-229 Style | CMR-229 Style | AL | E H |
1.09 1.31 |
2.66 3.16 |
3.14 3.70 |
2938 2939 |
| WR-187 | 3.95 to 5.85 | UG-407/U Cover | UG-406B/U Choke | AL | E H |
1.44 1.59 |
3.47 3.83 |
2.50 3.00 |
338 339 |
| WR-159 | 4.90 to 7.05 | CMR-159 Style | CMR-159 Style | AL | E H |
1.25 1.20 |
3.00 2.89 |
3.47 3.36 |
5938 5939 |
| WR-137 | 5.85 to 8.20 | UG-441/U Cover | UG-440B/U AL C | AL | E H |
1.13 1.22 |
2.69 2.94 |
1.38 1.75 |
438 439 |
| WR-112 | 7.05 to 1.00 | UG-138/U Cover | UG-137-B/U Choke | AL | E H |
1.09 1.19 |
2.63 2.86 |
1.31 1.63 |
538 539 |
| WR-102 | 7.00 to 11.0 | WR-102 Cover | WR-102 Choke | AL | E H |
1.09 1.19 |
2.63 2.86 |
1.31 1.57 |
0238 0239 |
| WR-90 | 8.20 to 12.4 | UG-135/U Cover | UG-136B/U Choke | AL | E H |
.96 1.03 |
2.31 2.50 |
.88 1.13 |
638 639 |
| WR-75 | 10.0 to 15.0 | WR-75 Cover | WR75 AL Choke | AL | E H |
.66 .69 |
1.56 1.69 |
1.00 1.19 |
7538 7539 |
| WR-62 | 12.4 to 18.0 | UG-1665/U Cover | UG1666/U Choke | AL | E H |
.69 .75 |
1.69 1.81 |
1.19 1.35 |
738 739 |
| WR-51 | 15.0 to 22.0 | WR-51 Cover | WR-51 Choke | AL | E H |
.69 .75 |
1.69 1.78 |
1.16 1.28 |
5138 5139 |
| WR-42 | 18.0 to 26.5 | UG-595/U Cover | UG-596A/U Choke | BR | E H |
.63 .66 |
1.47 1.56 |
.88 1.00 |
838 839 |
| WR-28 | 26.5 to 40.0 | UG-599/U Cover | UG-600A/U-AL Choke | BR | E H |
.47 .50 |
1.13 1.19 |
.88 .94 |
1038 1039 |
| WR-22 | 33.0 to 50.0 | WR-22 Rd. Cover.. | WR-22 Rd. Cover. | BR | E H |
.50 .50 |
1.22 1.22 |
.85 .90 |
1138 1139 |
|
Please call if you need any further assistance or information. |
|
