Waveguide
Elbows 90 Deg.
1.70 to 50.0 GHz
|
|
|
1.70 to 50.0 GHz |
Waveguide Elbows 90 Deg.
These 90 degree elbows are
constructed with precision MIL specification waveguide accurately formed to a
constant radius in both E and H planes. Internal dimensions are carefully
maintained. VSWR is 1.10 maximum over the full waveguide frequency
range. Alternate materials and flanges are available. See flange
section. Finish is instrument gray enamel.
Important ordering information: Add-1 to model number for chock -
choke. Add -2 to model number for cover - cover (i.e.: Model number
632-1 is a 90 degree plane elbow assembly with choke flanges for WR-90
waveguide.

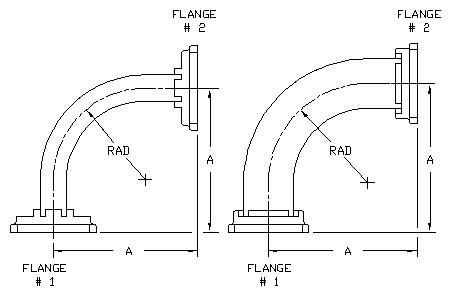

| WG Size |
Frequency Range, GHz |
Flange #1 | Flange #2 | WG Mtl. |
Bend Plane |
Inches A |
Inches Radius |
Model No. |
| WR-430 | 1.70 to 2.60 | CPR-430 Flat | CPR-430 Flat | AL | E H |
10.00 10.00 |
7.16 8.25 |
4332 4333 |
| WR-284 | 2.60 to 3.95 | UG-584/U Cover | UG-585A/U Choke | AL | E H |
4.75 5.50 |
2.75 3.50 |
232 233 |
| WR-229 | 3.30 to 4.90 | CMR-229 Style | CMR-229 Style | AL | E H |
3.88 4.50 |
3.13 3.69 |
2932 2933 |
| WR-187 | 3.95 to 5.85 | UG-407/U Cover | UG-406B/U Choke | AL | E H |
4.50 4.50 |
2.50 3.00 |
332 333 |
| WR-159 | 4.90 to 7.05 | CMR-159 Style | CMR-159 Style | AL | E H |
3.75 3.63 |
3.47 3.36 |
5932 5933 |
| WR-137 | 5.85 to 8.20 | UG-441/U Cover | UG-440B/U AL Choke | AL | E H |
2.38 2.75 |
1.38 1.75 |
432 433 |
| WR-112 | 7.05 to 10.0 | UG-138/U Cover | UG-137-B/U Choke | AL | E H |
2.31 2.63 |
1.31 1.63 |
532 533 |
| WR-102 | 7.00 to 11.0 | WR-102 Cover | WR-102 Choke | AL | E H |
2.31 2.63 |
1.32 1.57 |
0282 0233 |
| WR-90 | 8.20 to 12.4 | UG-135/U Cover | UG-136B/U Choke | AL | E H |
2.75 3.00 |
1.75 2.00 |
632 633 |
| WR-75 | 10.0 to 15.0 | WR-75 Cover | WR75 AL Choke | AL | E H |
1.50 1.69 |
1.00 1.19 |
7532 7533 |
| WR-62 | 12.4 to 18.0 | UG-1665/U Cover | UG1666/U Choke | AL | E H |
1.69 1.84 |
1.19 1.36 |
732 733 |
| WR-51 | 15.0 to 22.0 | WR-51 Cover | WR-51 Choke | AL | E H |
1.66 1.78 |
1.16 1.30 |
5132 5133 |
| WR-42 | 18.0 to 26.5 | UG-595/U Cover | UG-596A/U BR Choke | BR | E H |
1.38 1.50 |
.88 1.00 |
832 833 |
| WR-28 | 26.5 to 40.0 | UG-599/U Cover | UG-600A/U-AL Choke | BR | E H |
1.38 1.44 |
.88 .94 |
1032 1033 |
| WR-22 | 33.0 to 50.0 | WR-22 Rd. Cover. | WR-22 Rd. Cover | BR | E H |
1.25 1.25 |
.60 .91 |
1132 1133 |
|
Please call if you need any further assistance or information. |
|
