Double Ridge 45 and 90 Waveguide Straight Sections

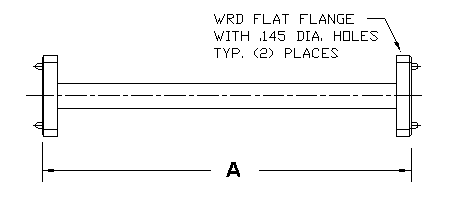

  These double ridge straight sections are constructed of MIL specification aluminum waveguide and are available in various lengths from 3 to 60 inches.  Other lengths are available on special order.  Standard catalog units are supplied with clearance holes.  Alternate flanges are available.  See flange section.  VSWR is 1.10:1 maximum.  Finish is instrument gray enamel.

Select model no. below for length desired
WG
Size
Frequency
Range GHz
Model No. / A ( Length )
3" 6" 12" 24" 36" 48" 60"

WRD-750

7.5 - 18.0 WRD750
-41-2
WRD750
-42-2
WRD750
-43-2
WRD750
-44-2
WRD750
-45-2
WRD750
-46-2
WRD750
-47-2
WRD-650 6.5 - 18.0 WRD650
-41-2
WRD650
-42-2
WRD650
-43-2
WRD650
-44-2
WRD650
-45-2
WRD650
-46-2
WRD650
-47-2

Please call if you need any further assistance or information.
