Quality Microwave Components

Double Ridge 45 and 90  Waveguide Elbows

  These aluminum double ridge elbows are constructed using MIL specification waveguide with accurately formed constant radius for both E and H planes.  VSWR is 1.12:1 maximum over frequency range.  Standard catalog units are supplied with clearance holes.  Alternate flanges are available.  See flange section.  Finish is instrument gray enamel.

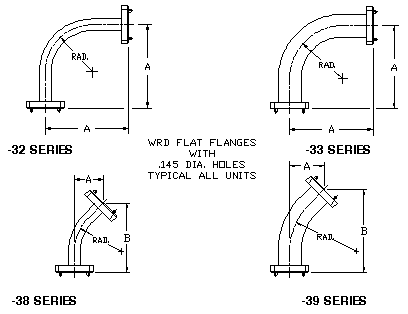

WG
Size
Frequency
Range, GHz
Degree
of Band
Bend
Plane
Inches
A
Inches
B
Inches
Radius
Model
No.
WRD-750 7.50 to 18.0 90 Deg. E 2.5 - 1.71 WRD750-32-2
WRD-750 7.50 to 18.0 90 Deg. H 3.00 - 1.90 WRD750-33-2
WRD-750 7.50 to 18.0 45 Deg. E 1.04 2.50 1.71 WRD750-38-2
WRD-750 7.50 to 18.0 45 Deg. H 1.24 3.00 2.40 WRD750-39-2
WRD-650 6.50 to 18.0 90 Deg. E 3.00 - 1.71 WRD650-32-2
WRD-650 6.50 to 18.0 90 Deg. H 3.00 - 1.91 WRD650-33-2
WRD-650 6.50 to 18.0 45 Deg. E 1.04 2.50 1.71 WRD650-38-2
WRD-650 6.50 to 18.0 45 Deg. H 1.24 3.00 2.41 WRD650-39-2

Please call if you need any further assistance or information.
