BULKHEAD FLANGE UNITS
1.70 TO 50.0 GHz
|
|
|
1.70 TO 50.0 GHz |
BULKHEAD FLANGE UNITS

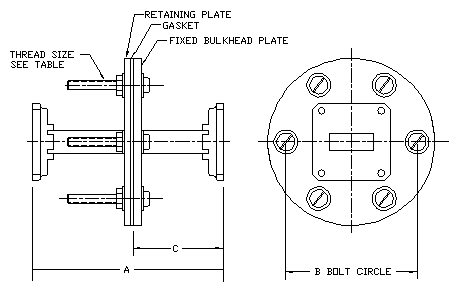

The bulkhead flange assembly is a component used to carry a waveguide
transmission line through a cabinet siding, wall or similar paneling. The
units are easily adapted to various wall thicknesses. A neoprene rubber
flange gasket is incorporated. Standard waveguide flange connectors are
provided as listed in the chart below. The VSWR of any unit is 1.05
maximum. Alternate materials and flanges available. See flange
section. Finish is instrument gray enamel.
| WG Size |
Frequency Range, GHz |
Equivalent Flange Type |
WG Mtl. |
Inches A |
Inches B |
Inches C |
Thread Size |
Model No. |
| WR-430 | 1.70 TO 2.60 | CPR-430 Flat | AL | 10.00 | 7.75 | 5.00 | #1/4-20UNC | 4368 |
| WR-284 | 2.60 to 3.95 | UG-584/U Cover | AL | 7.50 | 6.50 | 1.88 | #10-32UNF | 268 |
| WR-229 | 3.30 to 4.90 | CMR-229 Style | AL | 7.50 | 5.00 | 1.88 | #10-32UNF | 2968 |
| WR-187 | 3.95 to 5.85 | UG-407/U Cover | AL | 6.00 | 4.63 | 1.68 | #10-32UNF | 368 |
| WR-159 | 4.90 to 7.05 | CMR-159 Style | AL | 6.00 | 4.00 | 1.56 | #10-32UNF | 5968 |
| WR-137 | 5.85 to 8.20 | UG-441/U Cover | AL | 5.00 | 4.00 | 1.56 | #10-32UNF | 468 |
| WR-112 | 7.05 to 10.0 | UG-138/U Cover | AL | 4.00 | 3.25 | 1.13 | #10-32UNF | 568 |
| WR-102 | 7.00 to 11.0 | WR-102 Cover | AL | 4.00 | 3.25 | 1.13 | #10-32UNF | 0268 |
| WR-90 | 8.20 to 12.4 | UG-135/U Cover | AL | 4.00 | 2.75 | 1.90 | #10-32UNF | 668 |
| WR-75 | 10.0 to 15.0 | WR-75 Cover | AL | 4.00 | 2.75 | 1.90 | #10-32UNF | 7568 |
| WR-62 | 12.4 to 18.0 | UG-1665/U Cover | AL | 3.50 | 2.63 | 1.06 | #10-32UNF | 768 |
| WR-51 | 15.0 to 22.0 | WR-51 Cover | AL | 3.50 | 2.63 | 1.06 | #10-32UNF | 5168 |
| WR-42 | 18.0 to 26.5 | UG-595/U Cover | BR | 3.00 | 2.50 | 1.18 | #10-32UNF | 868 |
| WR-28 | 26.5 to 40.0 | UG-599/U Cover | BR | 2.50 | 2.50 | 1.18 | #10-32UNF | 1068 |
| WR-22 | 33.0 TO 50.0 | WR-22 Rd. Cover | BR | 3.00 | 2.50 | .88 | #10-32UNF | 1168 |
|
Please call if you need any further assistance or information. |
|
