Waveguide to
Coaxial Adapters
Type N
1.70 to 22.0 GHz
|
|
|
1.70 to 22.0 GHz |
Waveguide to Coaxial Adapters Type N
These standard waveguide to Type N unites offer a reliable and convenient solution to system transition requirements. Complete specification are shown with many options available. Call Waveline for your special requirements. Alternate materials and flanges are available. See flange section. Finish is instrument gray enamel.
| WG Size |
Frequency Range, GHz |
Equivalent Flange Type |
WG Mtl. |
VSWR Max. |
Power Watts |

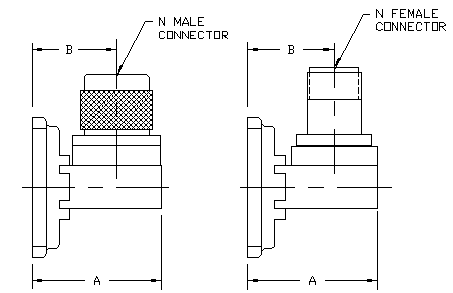

Inches Female A |
Inches Female B |
Inches Male A |
Inches Male B |
Model# N-Female |
Model# N-Male |
| WR-430 | 1.70 to 2.60 | CPR-430 Flat |
AL | 1.25 | 200 | 6.00 | 4.18 | - | - | 4301-NF | - |
| WR-284 | 2.60 to 3.95 | UG-584/U Cover | AL | 1.25 | 200 | 2.71 | 1.98 | 3.75 | 2.88 | 201-NF | 201-NM |
| WR-229 | 3.30 to 4.90 | CMR-229 Style | BR | 1.25 | 200 | 2.17 | 1.50 | 3.00 | 1.94 | 2901-NF | 2901-NM |
| WR-187 | 3.95 to 5.85 | UG-407/U Cover | AL | 1.25 | 200 | 2.38 | 1.84 | 2.38 | 1.78 | 301-NF | 301-NM |
| WR-159 | 4.90 to 7.05 | CMR-159 Style | AL | 1.25 | 200 | 2.19 | 1.69 | 2.19 | 1.56 | 5901-NF | 5901-NM |
| WR-137 | 5.85 to 8.20 | UG-441/U Cover | AL | 1.25 | 200 | 2.13 | 1.60 | 2.13 | 1.60 | 401-NF | 401-NM |
| WR-112 | 7.0t to 10.0 | UG-138/U Cover | AL | 1.25 | 200 | 1.75 | 1.25 | 1.75 | 1.20 | 501-NF | 501-NM |
| WR-102 | 7.00 to 11.0 | WR-102 Cover | AL | 1.25 | 200 | 2.00 | 1.47 | 2.00 | 1.47 | 0201-NF | 0201-NM |
| WR-90 | 8.20 to 12.4 | UG-135/U Cover | AL | 1.25 | 200 | 1.50 | 1.00 | 1.50 | 1.00 | 601-NF | 601-NM |
| WR-75 | 10.0 to 15.0 | WR-75 Cover | AL | 1.50 | 175 | 1.50 | 1.00 | - | - | 7501-NF | - |
| WR-62 | 12.4 to 18.0 | UG-1665/U Cover | AL | 1.50 | 175 | 1.75 | 1.25 | - | - | 701-NF | - |
| WR-51 | 15.0 to 22.0 | WR-51 Cover | BR | 1.60 | 150 | 1.56 | 1.00 | - | - | 5101-NF | - |
|
Please call if you need any further assistance or information. |
|
26 |
|
P.O. BOX 718, West Caldwell, NJ (973) 808-9113 Fax (973) 808-1524 |
