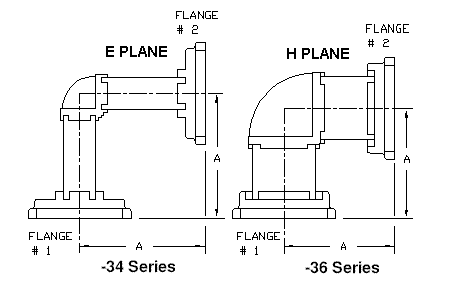

Waveguide Mitered Elbows  90 Deg.

  These 90 degree precision mitered elbows have been designed for optimum broadband performance and to meet a wide range of waveguide system mechanical configurations.  VSWR is 1.10 maximum over the full waveguide frequency range.  All units are constructed with precision MIL specification waveguide, brazed for precision and strength.  Alternate materials and flanges are available.  See flange section.  Finish is instrument gray enamel.

 Important ordering information:  Add -1 to model number for choke - choke.  Add -2 to model number for cover - cover.  i.e.:   Model number 634-1 is a 90 degree E-miter assembly with choke flanges for WR-90 waveguide.
